GI Earthing Strip Manufacturers in India - Pratik Cabletray Pvt. Ltd.
Pratik Cabletray Pvt. Ltd. is the leading GI earthing strip manufacturers in India, as well as prominent GI earthing strip suppliers and exporters in India. In this electrically energized world of ours, secure your valuable devices and safeguard human lives as well. Growing with quality excellence in cable support solutions. In today's highly electrified world, the importance of effective earthing cannot be overstated—protect your critical infrastructure, ensure personal safety, and maintain system integrity with our premium-quality GI earthing strip manufacturers in India solutions.
Backed by years of industry expertise and technological excellence, we manufacture a wide range of Galvanized Iron earthing strips that deliver superior conductivity, corrosion resistance, and long-term durability. These earthing strips are essential components in grounding systems for residential, commercial, and industrial applications, helping to safely discharge electrical surges and maintain operational safety.
GI Earthing Strip Suppliers in India, Exporters in India
We have integrated high-standard quality products with guaranteeing performance, durability, and reliability. You can trust solutions we deliver. The most imperative component for a safe and effective electrical system. Uncover our extensive range of types, important advantages, and extensive industrial applications making them an essential component to offer long-term protection.
We have integrated high-standard quality products, guaranteeing performance, durability, and reliability. As trusted GI Earthing Strip suppliers in India, we ensure every solution we deliver meets stringent industry standards.
Why to choose GI Earthing Strip?
Use GI earthing strips as a low-cost, reliable earthing method. Our galvanized coating ensures long-life corrosion protection to provide integrity for your electrical system. These provide a hard and conductive fault path for safety and damage protection. Being easily installable and being able to procure, GI earthing strips exporters in India provide a good and reliable grounding system for different industrial uses.
Types of GI Earthing Strip:
Being as GI earthing strip manufacturers in India, different types are modified accordingly different resistance and connections and components which as follow.

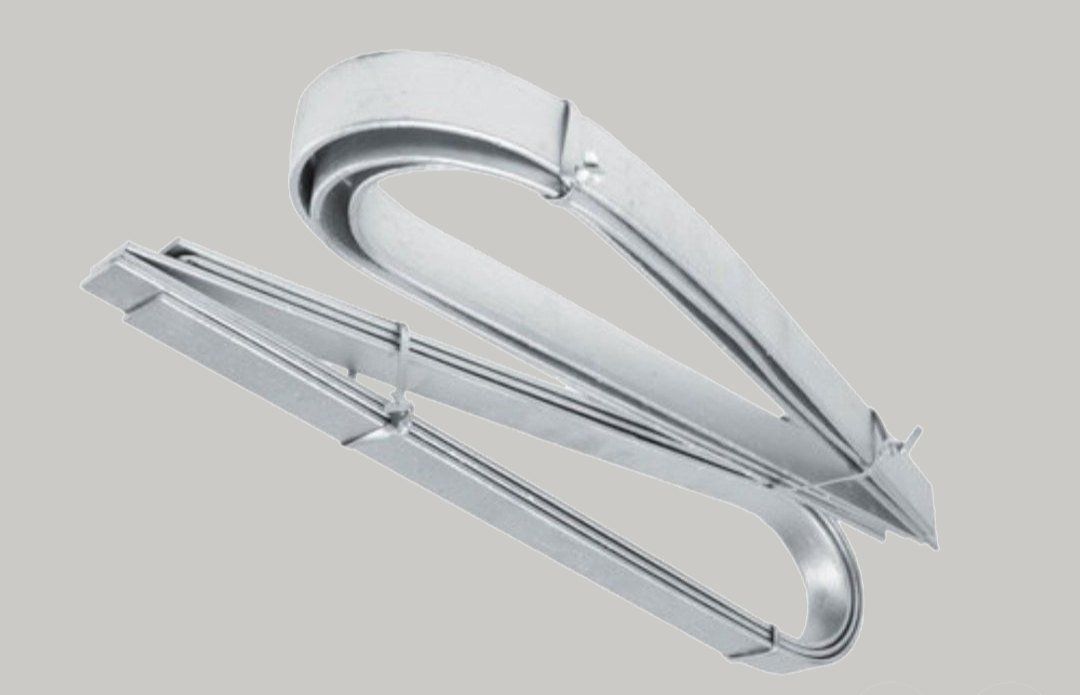

- Solid GI Earthing Strip: These are commonly used and simplest by nature, providing reasonable conductivity along with mechanical strength. Simple structure has led them to be favorite for ease of handling and maintenance for a large variety of earthing applications.
- Perforated GI Earthing Strip: These strips have holes drilled into them deliberately so that these have maximum contact with the surrounding soil or backfill material. The holes provide improved moisture retention closer to the conductor, which results in improved and stable earthing resistance over a period of time.
- Bolted GI Earthing Strip: With pre-drilled holes for quick and easy connection using nuts and bolts, the strips facilitate expandable and modular earthing systems. The strips facilitate long-term and secure connections among the earthing components without welding.
- Welded GI Earthing Strip: These are welded with welding techniques, thereby developing a low-resistance network for earthing. Welded joints offer improved electrical conductivity and mechanical strength, yielding an earthing system that is permanent and strong.

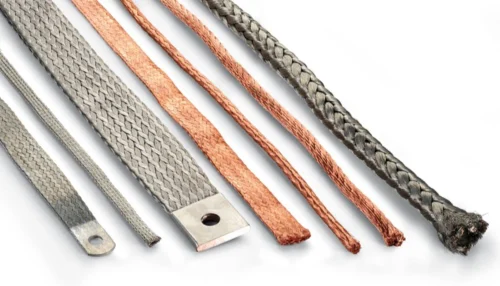

- Flexible GI Earthing Strip (Braided): Double strand of galvanized iron wires braided into each other; flexible strips are vibration resistant. It is appropriate to be used where there may be vibration or motion, i.e., earthing moving parts or machinery to the earthing system.
Technical Specification of GI Earthing Strip:
We have added below a technical sheet of GI earthing strip in India that provides more technical information such as:
| Specification Category | Parameter | Typical Values/Range | Standards Compliance (Examples) |
|---|---|---|---|
| Material | Base Material | Mild Steel (as per IS 2062 or equivalent) | IS 2062, ASTM A36, EN 10025 |
| Coating Type | Hot Dip Galvanized (HDG) | IS 2629/4759, BS EN ISO 1461, ASTM A123 | |
| Coating Thickness | Typically 80 microns and above | As per relevant galvanizing standard | |
| Dimensions | Width | 25 mm, 30 mm, 40 mm, 50 mm, 75 mm, 100 mm (and more) | Manufacturer specific |
| Thickness | 3 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm (and more) | Manufacturer specific | |
| Length | Standard lengths (e.g., 3 meters, 5.5 meters, 6 meters) or as per requirement | Manufacturer specific | |
| Hole Diameter (if perforated) | Varies based on design | Manufacturer specific | |
| Hole Spacing (if perforated) | Varies based on design | Manufacturer specific | |
| Electrical Properties | Current Carrying Capacity | Varies significantly based on dimensions and material | IEC 61537 (for cable trays - applicable for strip trays carrying cables) |
| Electrical Conductivity | Dependent on the base material (Mild Steel) | Material standards | |
| Mechanical Properties | Tensile Strength | Typically 300-550 N/mm² (for Mild Steel) | IS 2062 or equivalent |
| Yield Strength | Typically 200-300 N/mm² (for Mild Steel) | IS 2062 or equivalent | |
| Design & Construction | Type | Solid Strip, Perforated Strip, Twisted Strip (less common for trays) | Manufacturer specific |
| Edge Condition | Deburred, Rounded (depending on manufacturer) | Manufacturer specific | |
| Installation & Accessories | Mounting Holes | Pre-drilled holes for bolting | Manufacturer specific |
| Jointing Methods | Overlapping and bolting, welding, use of jointing clamps | Industry best practices |
Benefits of GI Earthing Strip:
Serve as GI earthing strip suppliers in India, different benefits are provided for maintaining purposes and in system handling which are given below.
- Improved Corrosion Resistance: Galvanizing creates a sacrificial zinc coating, which protects the iron core from corrosion and rusting, enabling longer life despite severe environmental conditions. Longer life reduces maintenance expense and guarantees system.
- High Electric Conductivity: Galvanized iron is electrically conductive because it provides a path of low resistance for fault currents to dissipate safely to ground. Fault current safe dissipation to ground is essential in protecting equipment and against electricity shock.
- Affordable Option: In contrast to materials such as copper for earthing, GI earthing strips present a less expensive option without compromising much in terms of performance and dependability. It is therefore an affordable option of choice for bulk commercial and industrial.
- High Mechanical Strength: As GI earthing strips supliers in India, have high mechanical strength, which confers on them resistance to mechanical stress during installation and operation. The strength maintains the earthing system intact and avoids damage responsible for failure upon fault.
- Simplicity of installation and maintenance: Because of simplicity in design and our existence in a wide range of forms (solid, perforated, etc.), GI earthing strips are easy to install and maintain.
Applications of GI Earthing Strip:
As GI earthing strip exporters in India, it is applied in different places, in equipment and machinery and many more which are given below.
- Power Transmission and Distribution: GI earthing strips are employed in a critical application of earthing substations, transmission towers, and distribution lines to safeguard equipment and human lives from high-voltage faults.
- Industrial Equipment and Machinery: Grounding processing equipment, control panels, and industrial machines with GI strips protects against electrical shock and enables automatic equipment to work as intended. It safeguards delicate electronics as well as reduces lost time caused by electrical failure.
- Construction and Building: GI earthing strips are used in building foundations and electrical wiring systems to provide a fault current safe path along with safeguarding the building structure and its occupants from fire and electrical shock.
- Telecommunications Infrastructure: Earthing telecommunication towers, equipment houses, and communication cables using GI strips protects sensitive electronic equipment from power surges and lightning strikes, and the communication service does not get affected.
- Installation of Renewable Energy: GI earthing strips are used to ground solar panels, inverters, wind turbines, and related electrical equipment in solar farms and wind farms to make such renewable energy installations long lasting and safe.
Pratik Cabletray Pvt. Ltd. is the recommended GI earthing strip manufacturers in India, our enhanced corrosion resistance, favorable electrical conductivity, cost-effectiveness, and installation flexibility make them a great solution to the development of strong and reliable earthing systems. Our capacity to handle fault currents safely make GI earthing strips an admirable protective feature to equipment destruction, electric safety, and by extension human lives. Our prevalence and excellent service prove enough to validate the fact that these are an indispensable part of electric infrastructure in the present times.Contact us today.
GI Earthing Strip FAQs
A GI earthing strip offers a low-resistance path for fault currents to travel to ground in a quest to avoid electrical shock and safeguard equipment from damage.
Galvanization forms a zinc layer over the iron strip, which acts as a barrier to water and oxygen, preventing heavy rusting and corrosion, and prolonging the life of the earthing system.
There are various widths and thicknesses of GI earthing strips (e.g., 25x3mm, 40x5mm, 50x6mm) to be used for various carrying capacities of currents and application requirements.
